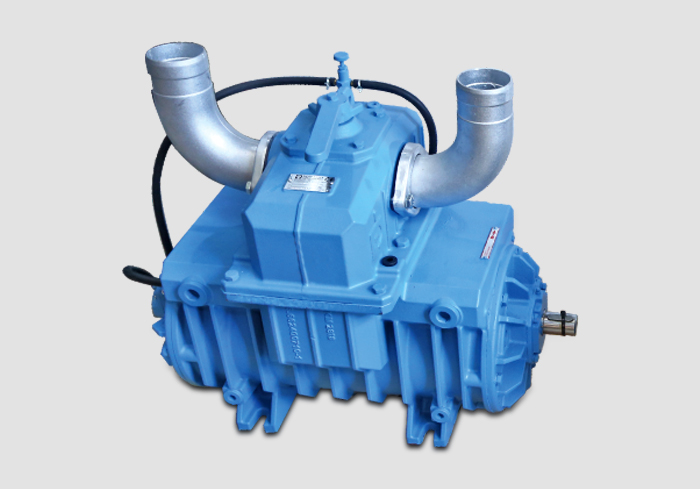

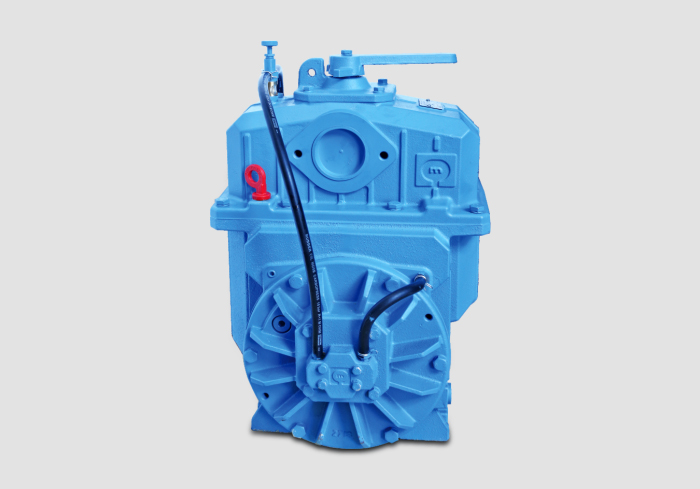

| MORO - Pump Model Selection Chart | ||||
|---|---|---|---|---|
| Model | Moro PM60A | Moro PM70A | Moro PM80A | |
| Cooling method | aria/air | aria/air | aria/air | |
| Max rate flow l./min. | 7200 | 9300 | 11800 | |
| Rate flow @ 1.100 rpm l./min. | 5697 | 7402 | 9295 | |
| Max rpm | 1400 | 1400 | 1400 | |
| Standard rpm | 1000 | 1000 | 1000 | |
| Continuous operation Std. vanes (min.) | 5-10 | 5-10 | 5-10 | |
| Continuous operation Spec. vanes (min.) | 25 | 25 | 25 | |
| Max vacuum | 95% | 95% | 95% | |
| Continuous max vacuum | 80% | 80% | 80% | |
| Max working pressure (absolute bar) | 3 | 3 | 3 | |
| Max working pressure (bar) | 2 | 2 | 2 | |
| Max power absorption (Kw) | 18 | 26 | 34 | |
| Noise (dB) | 75 | 76 | 76 | |
| Number of vanes | 6 | 6 | 6 | |
| Oil tank capacity (l.) | 1,7 | 2,7 | 3,7 | |
| Weight (Kg.) | 120 | 140 | 162 | |
